7303

3M / 7303 (7010373975)

3M™ Anisotropic Conductive Film Adhesive 7303, 3 mm x 35 m Roll, 100 Rolls/Case
3M™ ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.

Price Per Roll

100-200
$354.76*
300-400
$344.17*
500-600
$329.42*
700-800
$315.88*
900+
$303.41*

3M Product Number: 7303

3M ID Number: 7010373975    3M UPC Number: 51115524363    3M Legacy Product Number: 70006457199

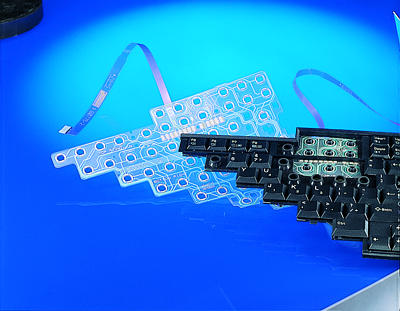

Additional Product Information: The unbonded film is slightly tacky at room temperature and consists of a thermosetting epoxy/acrylate adhesive matrix randomly loaded with conductive particles. These particles allow interconnection of circuit lines through the adhesive thickness, but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. Hard conductive particles are preferred for copper traces, as they embed into traces for good electrical performance. 3M™ ACF 7303 may be used to bond a flexible printed circuit to another flexible printed circuit or to a printed circuit board. Standard Lead Time: 14 Calendar Days

Product Resources

Tech Data Sheet
