4314

3M / 4314 (7100006373)

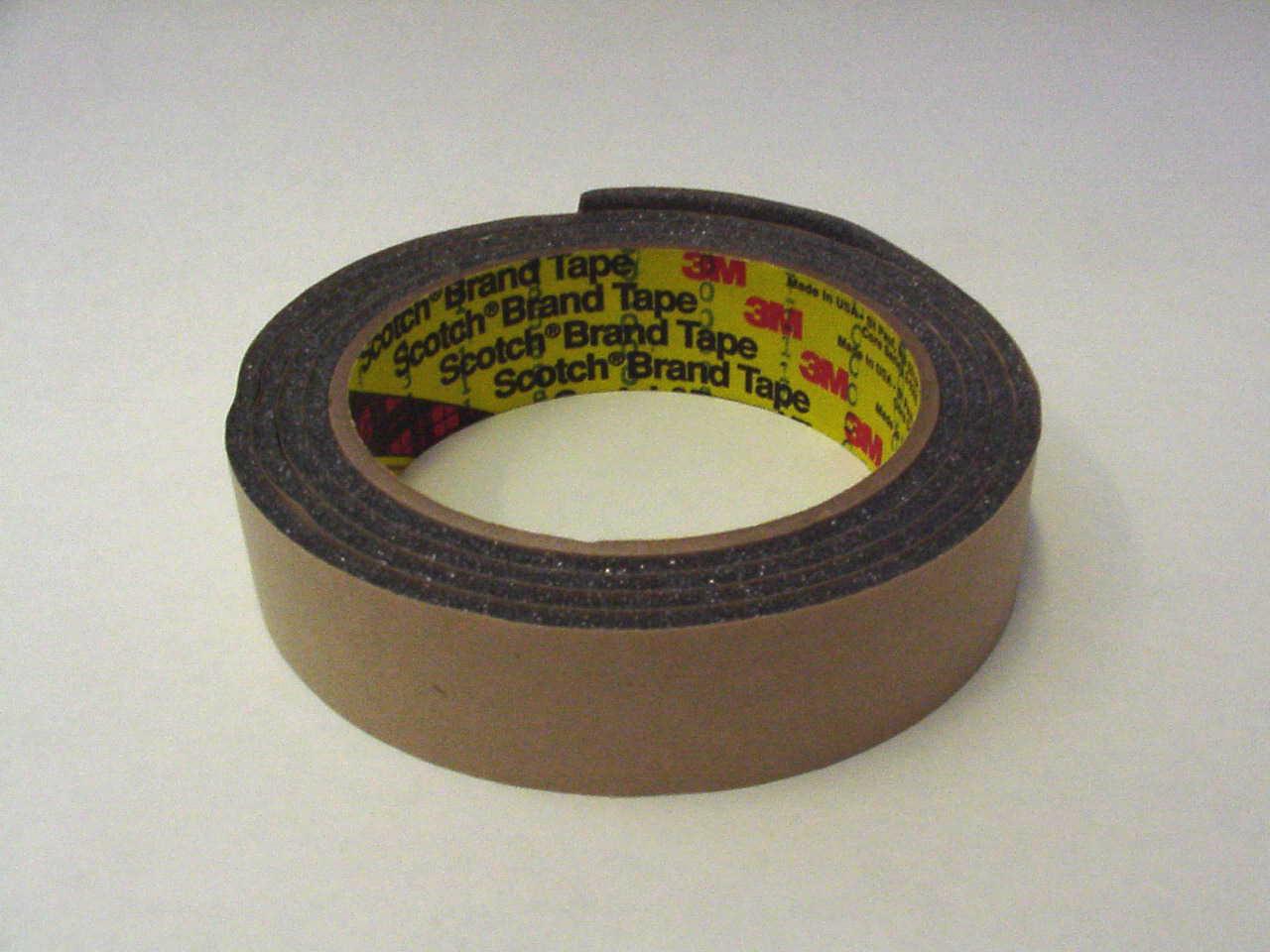

3M™ Urethane Foam Tape 4314, Charcoal, Gray, 1/2 in x 18 yd, 250 mil, 18 Roll/Case
3M™ Urethane Foam Tape 4314 is a conformable, low-density, open-cell foam tape with a pressure sensitive acrylic adhesive on one side. This tape will adhere to a variety of substrates and can be used in numerous mounting applications to dampen sound and create a clean and durable product.

Price Per Roll

18-36
$30.41*
54-72
$29.50*
90-108
$28.23*
126-144
$27.07*
162+
$26.01*

3M Product Number: 4314

3M ID Number: 7100006373    3M UPC Number: 51131064416    3M Legacy Product Number: 70006095734

Additional Product Information:

Seals Out Moisture, Dust and Drafts
3M™ Urethane Foam Tape 4314 is 1/4 in. thick, comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. The adhesive is protected by a silicone treated paper liner. It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. Special note: Extra care should be taken when handling to avoid damaging tape.

Recommended Applications

  • Cushion and dampen sound in electronics such as printers, keyboards, computers, aircraft lights and automotive dashboards
  • Register covers
  • Recessed lighting
  • Door, window and cabinet seals

Excellent Shear Holding Strength with 3M™ Adhesive 430
3M™ Urethane Foam Tape 4314 features 3M™ Adhesive 430. This pressure sensitive, modified acrylic adhesive provides high initial quick-stick to a variety of surfaces and substrates. It has an excellent chemical resistant and shear holding strength, even at elevated temperatures. Adhesive 430 is designed to perform at temperatures up to 180°F (82°C) in the short term and 150°F (70°C) long term.

Protect Sensitive Components
The adhesion of 3M™ Single-Coated Foam Tapes is typically satisfactory within 20 minutes and continues to build with additional time. The adhesive is protected by a thick, silicone treated paper liner and has a firm, high-density foam. This design offers an attractive and clean appearance after application.

What is Open Cell Foam?
Open cell foams are commonly used between component panels where a degree of separation is needed to dampen or prevent vibration, as a thermal insulation barrier and to protect against contamination, but where a measure of airflow is still necessary, such as with electronic components where air flow helps keeps components cool.

Product Resources

Tech Data Sheet
